OxyRevo Elite36 1.4 ATA Portable Hyperbaric Chamber

4.9 · 128 reviews
$7,999.00 $9,411.00 Save $1,412.00
Operating Machine
More payment options

Buy Online Or Call Now To Order!

✓ Free Shipping - on most OxyRevo products

✓0% Financing Available - OxyRevo + 0% APR, Applicable at Checkout

✓In Stock - orders leave the warehouse in 3-5 business days

✓Questions? - Call 317-401-9687

Zero Sales Tax
Manufactor Warranty
Authorized Dealer Guarantee
Full manufacturer warranty, genuine product, and expert support — every order ships from an authorized dealer.

Overview

Portable Lying Hyperbaric Chamber · 1.4 ATA

OxyRevo Elite36 1.4 ATA Portable Hyperbaric Chamber

Think of the Elite36 as a wider Elite32. It keeps the 90-inch length, the 1.4 ATA working pressure and the five double-layered windows, but the diameter grows from 32 inches to 36 inches (90 cm). That makes it the widest 1.4 ATA soft chamber OxyRevo builds, and the extra width adds 4.4 lbs to carry: 33 lbs compared with the Elite32's 28.6 lbs.

You notice four more inches of girth at the shoulders. There is space between your arms and the shell, room to change position during a 60 to 90 minute session, and space for a tablet or book beside you. The cover is High Strength TPU joined by high-frequency heat welding, one press of the pressure converter drops the chamber to 1.3 or 1.2 ATA, and the sound level is rated at ≤50 dB. At checkout, choose the Standard version with three separate machines or the Pro version with one all-in-one unit.

Working Pressure
1.4 ATA
Steps to 1.3 or 1.2
Diameter
36 in
90 cm across
Length
90 in
230 cm · 33 lbs / 15 kg
Windows
5 Large
Double-layered
Widest 1.4 ATA soft build 1.2 to 1.4 ATA adjustable 33 lbs / 15 kg ≤50 dB

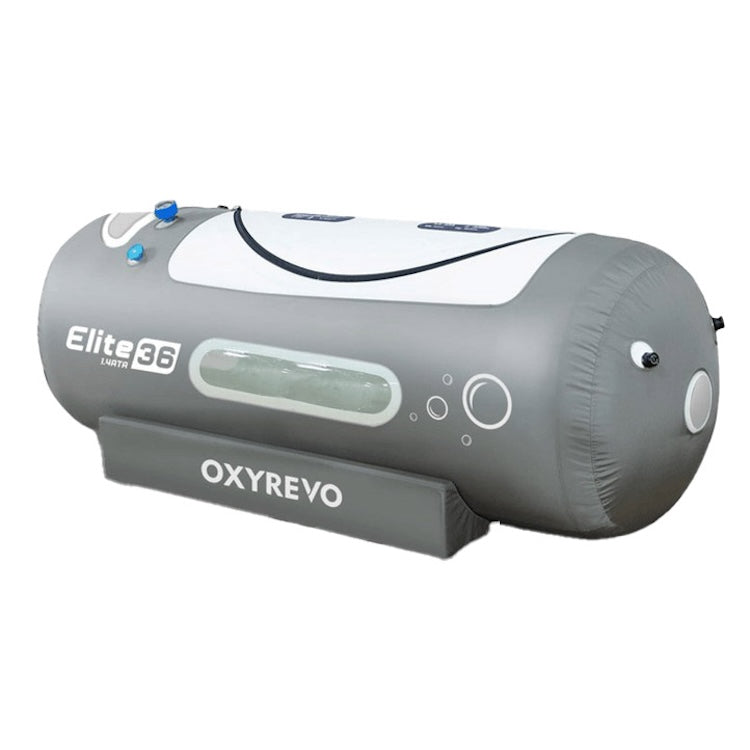

Grey OxyRevo Elite36 portable hyperbaric chamber, inflated, three-quarter view

The Build

What Four Extra Inches Get You

The Elite36 is built on the same engineering as the rest of the Elite range. Diameter is the one spec that sets it apart, and it is the spec you notice most when you spend an hour at a time inside.

📐
36 Inches Wide, 90 Inches Long
At thirty-six inches across, this is the widest soft-shell lying chamber OxyRevo makes at 1.4 ATA. The two published dimensions are the ones that matter for space: 90 inches long and 36 inches in diameter, four inches wider than the Elite32 on the same 90-inch body. That is enough width for your shoulders to clear the wall and for a tablet to come along.
36 in / 90 cm Diameter
🎚
One-Press Converter: 1.2, 1.3 Or 1.4 ATA
With one press, a pressure adjustment converter sets the chamber to 1.2, 1.3 or 1.4 ATA. OxyRevo says it built the converter for ear pressure during early sessions. A new user can stay at 1.2 ATA as long as they like, then step up with a single press.
1.2 · 1.3 · 1.4 ATA
🧵
Curved Zipper And Gravity Sink
The zipper follows a curve, and a gravity sink keeps it away from the sealing strips so the two surfaces no longer rub together. The seal strip is made of medical-grade silicone. On a 36-inch chamber the zipper is the longest moving part you handle every session, so reducing friction there matters.
Medical-Grade Silicone Seal
🔇
Quiet Enough To Rest Through
Sound is rated at ≤50 dB. OxyRevo's automatic pressure relief valves spread airflow evenly to reduce venting noise, and OxyRevo says it developed them because people trying to rest inside were hearing the valves vent outside.
≤50 dB Sound Level

Why Athletes Choose This

What The Elite36 Offers, In Eight Points

Each item below is a published spec for this chamber or a term of how OxyRevo and Athlete Restore sell it. None of them is a claim about what hyperbaric oxygen therapy does.

📐
36 inches across
Widest Elite Build
📱
Room for a tablet beside you
90 cm Diameter
🎚
Step down to 1.2 ATA
One-Press Converter
⚖️
33 lbs for the whole chamber
4.4 lbs Over The Elite32
🪟
Five double-layered windows
Top, Bottom & Sides
🔇
Rated at ≤50 dB
Quiet Relief Valves
🧰
Filters are the only routine part
Every 6 to 12 Months
🛡
2-year home use warranty
Lifetime Tech Support

A Closer Look

Three Details To Review Before You Order

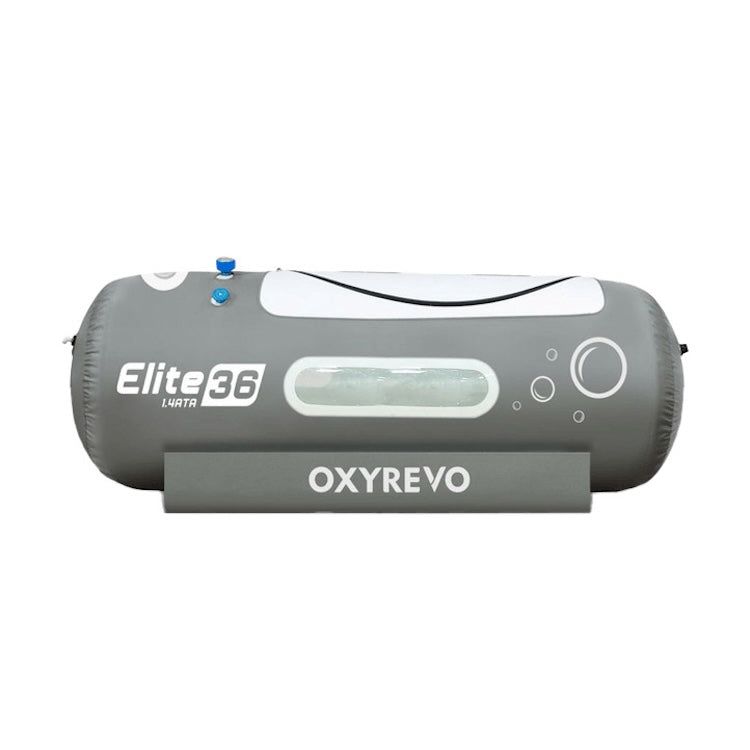

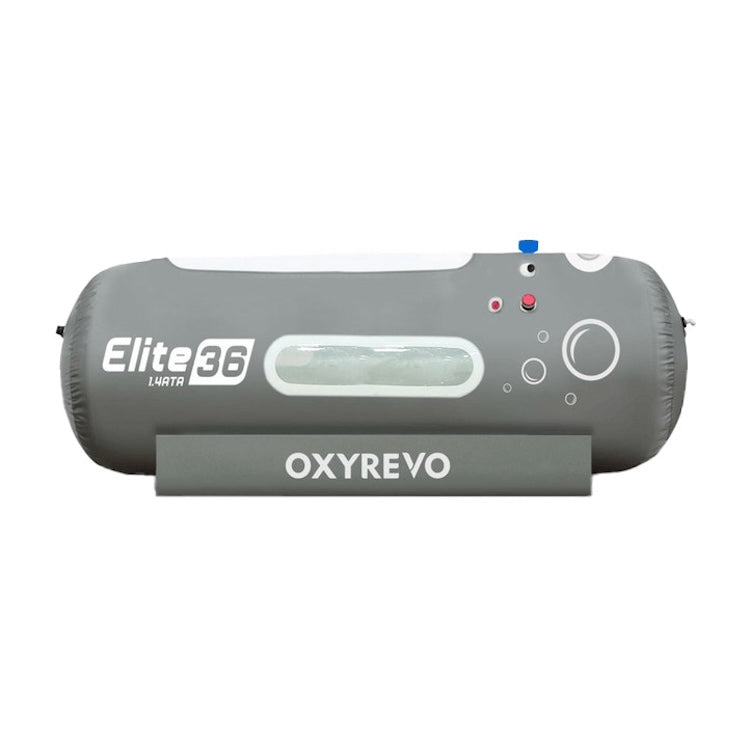

Side profile of the inflated grey OxyRevo Elite36 chamber showing the long window running down the side
Glazing

Five Windows Across Three Surfaces

The Elite36 has five large windows on the top, the bottom and the sides, and every one is double-layered. OxyRevo says it glazed this much of the shell for a wide, clear view and more light inside. The wide diameter works toward the same goal from another angle: more air around your body.

  • 5 large windows with double-layered construction
  • Set into the top, bottom and sides of the chamber
  • 36-inch diameter across a 90-inch length
  • Grey cover, with OEM colors available on request
Double-Layered Top, Bottom & Sides

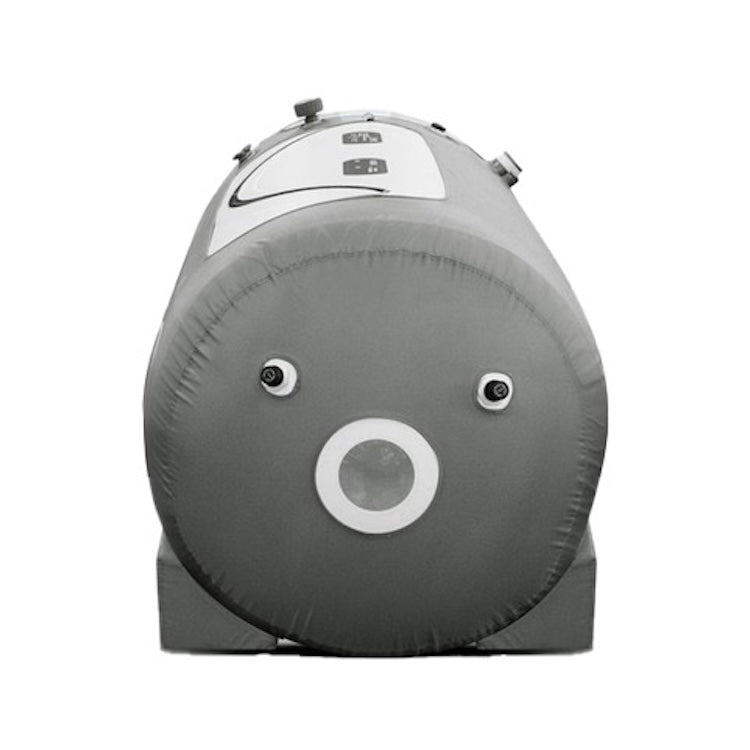

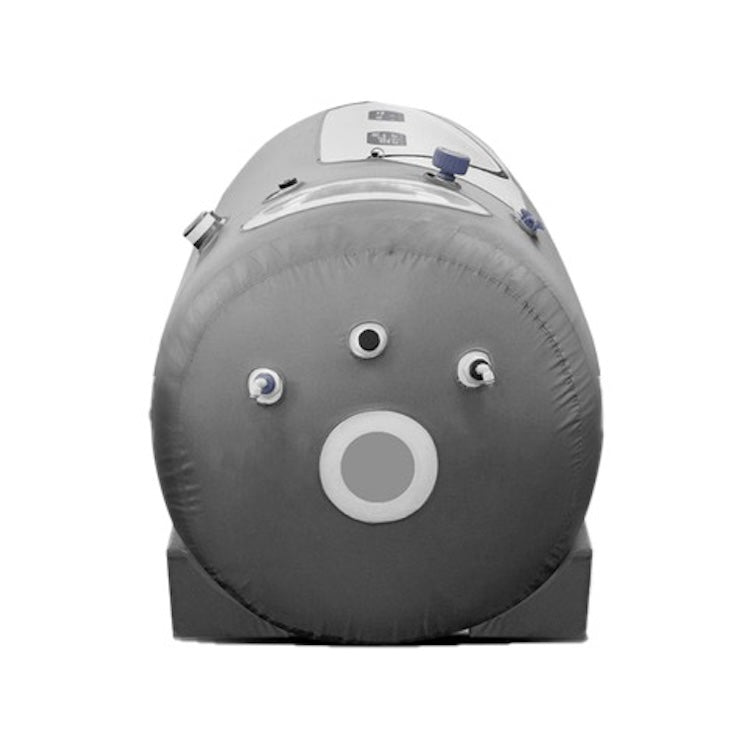

Head-on view of the OxyRevo Elite36 chamber end showing the circular port
Pressure & Safety

Dual Gauges, Two Ways Out

Filtered air pressurizes the chamber. It has two aviation-grade pressure gauges, one inside and one outside, so the occupant sees the same reading as anyone standing beside it. The pressure release valves are doubled the same way, and the emergency valve is rated for an occupant exit within 30 seconds. You can depressurize and open the chamber from the inside as well as the outside.

  • Aviation-grade gauges on the inside and outside
  • Pressure release valves inside and out
  • Emergency valve rated for an exit within 30 seconds
  • High-frequency heat-welded seams, with no glue and no stitching
  • UV laser valve labels, with no paper stickers to peel
Dual Gauges 30-Second Emergency Valve High Strength TPU

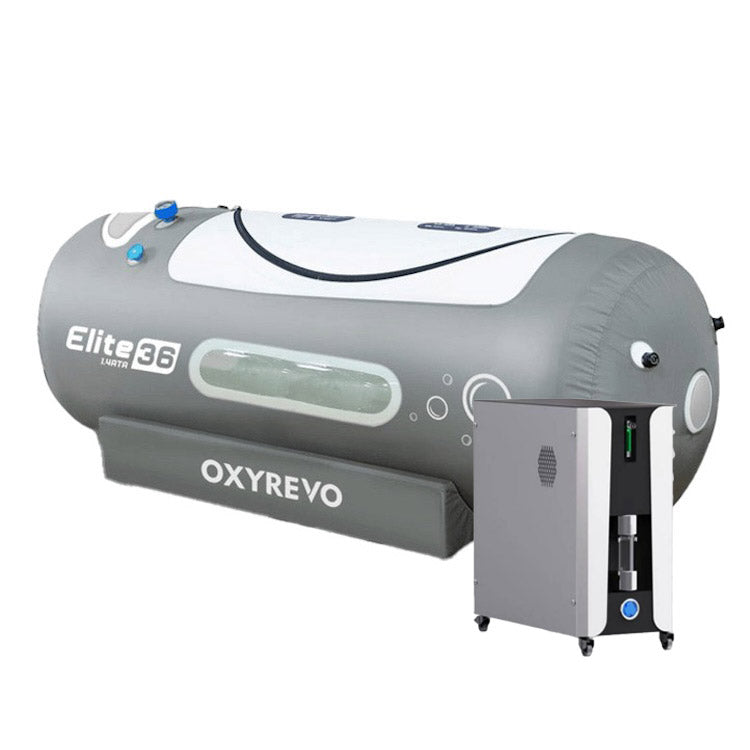

The OxyRevo Elite36 chamber with the Pro all-in-one machine unit standing beside it
Operating Unit

Choosing Standard Or Pro

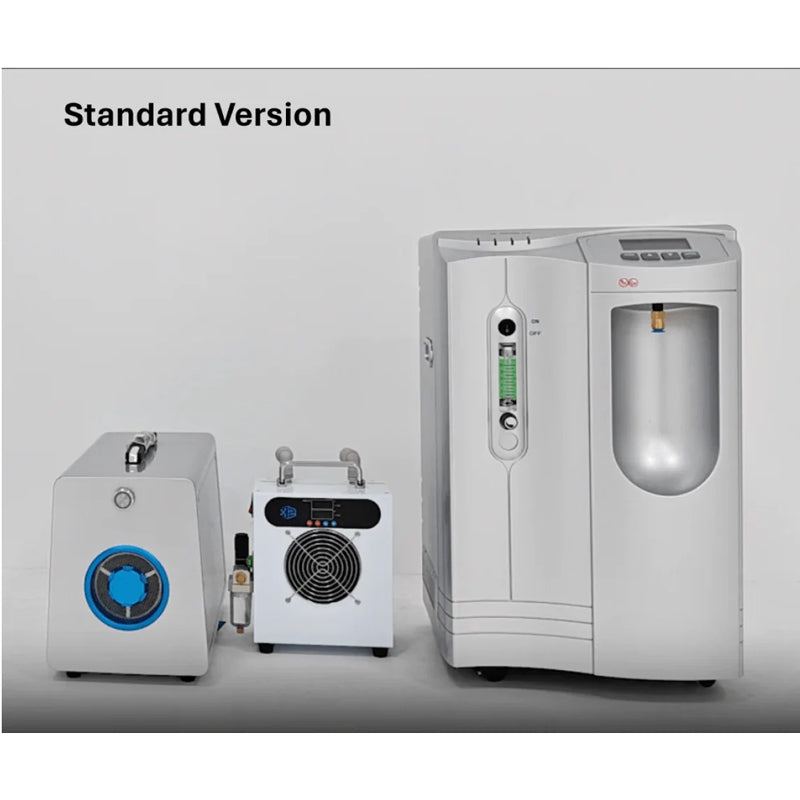

This is the main choice you make at checkout. The Standard version comes with three machines: air compressor model AE01, air cooler model ZLA01 and oxygen concentrator model HG10, each set up and turned on separately. The Pro version fits everything into one cabinet, 27.56" long by 13.78" wide by 29.53" high and 80 kg, with one press activating every function. Both run a 10L oxygen concentrator that makes oxygen continuously, so you never buy or refill oxygen tanks.

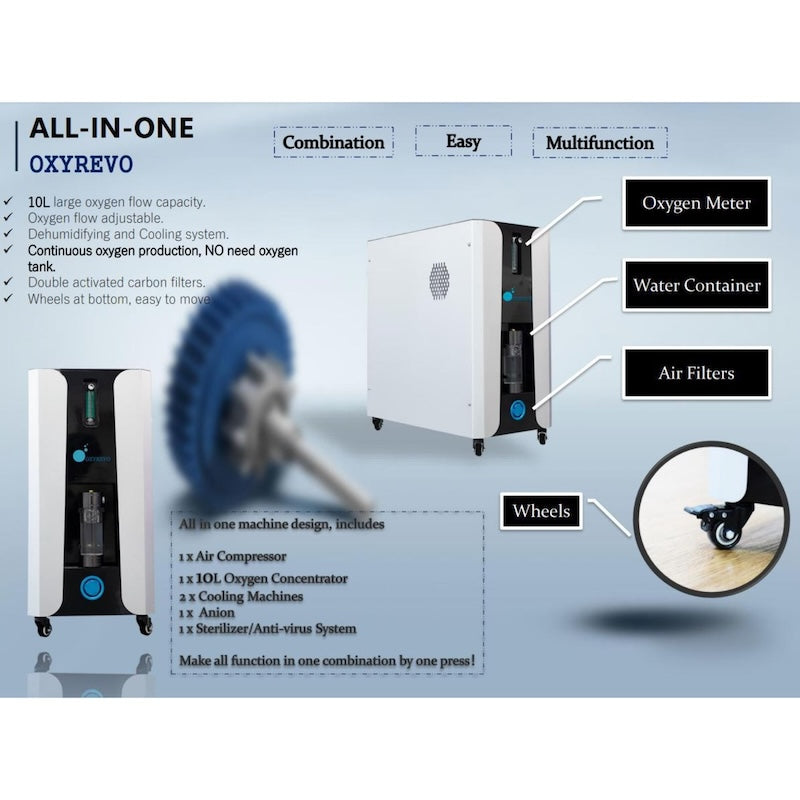

  • Pro unit houses 1 air compressor, a 10L oxygen concentrator, 2 cooling machines, an anion generator, timing alarm, oxygen meter, water container and air filters
  • Pro also gets double activated carbon filters and Nano Water Ion technology with an anti-virus system; OxyRevo states a 99% virus sterilization rate
  • Standard has double filters on input and output, costs less and moves more easily
  • Included with either version: oxygen mask, spare filters, fuses, air and oxygen tubing, power cable
10L Oxygen Concentrator No Oxygen Tanks Two Versions

The OxyRevo Soft Lying Range

Four Chambers Side By Side

All four soft-shell lying chambers are 90 inches long, have a High Strength TPU cover with a curved zipper, and carry a ≤50 dB rating. They differ on two things: working pressure, 1.4 ATA on the Elite pair and 1.5 ATA on the Apex pair, and diameter, either 32 or 36 inches. The Elite36 is the wide 1.4 ATA option.

Grey OxyRevo Elite32 portable hyperbaric chamber, inflated
Elite32
The narrower Elite. Same pressure and length as this chamber, four inches slimmer, and the lightest of the four to carry.
1.4 ATA, adjustable from 1.2 90" long × 32" diameter 28.6 lbs / 13 kg 5 double-layered windows
Shop the Elite32
You're Here
Grey OxyRevo Elite36 portable hyperbaric chamber, inflated
Elite36
The Elite build widened to a 36-inch diameter. It is the widest 1.4 ATA soft chamber OxyRevo makes.
1.4 ATA, adjustable from 1.2 90" long × 36" diameter 33 lbs / 15 kg 5 double-layered windows
Currently viewing
Grey OxyRevo Apex32 portable hyperbaric chamber showing two large side windows
Apex32
The 32-inch body with pressure raised to 1.5 ATA, plus seven windows.
1.5 ATA working pressure 90" long × 32" diameter 33 lbs / 15 kg 7 windows
Shop the Apex32
Grey OxyRevo Apex36 portable hyperbaric chamber showing two large side windows
Apex36
This chamber's wide body at 1.5 ATA, with seven windows. At 37 lbs, it is the heaviest soft chamber in the range.
1.5 ATA working pressure 90" long × 36" diameter 37 lbs / 17 kg 7 windows
Shop the Apex36

Questions

Frequently Asked Questions

OxyRevo publishes two dimensions: 90 inches of length (230 cm) and a 36-inch diameter (90 cm). We do not list an interior height or usable width, since the inside dimension of a soft chamber shifts with the mattress and with how the cover sits when inflated. OxyRevo measures those two figures, so those are the two we list. In practice, the 36-inch diameter gives you shoulder clearance and room for a tablet or book.
Diameter and weight. The Elite36 measures 36 inches across and weighs 33 lbs (15 kg). The Elite32 measures 32 inches across and weighs 28.6 lbs (13 kg). Everything else is identical: 1.4 ATA working pressure that adjusts down to 1.2, a 90-inch length, five double-layered windows, the same curved zipper and the same choice of Standard or Pro operating unit. Four extra inches of width for 4.4 extra lbs sums up the tradeoff.
Both have the 36-inch diameter and 90-inch length. The Apex36 runs at a higher working pressure of 1.5 ATA, has seven windows and weighs 37 lbs. The Elite36 runs at 1.4 ATA, has five windows and weighs 33 lbs. If pressure is your deciding spec, go with the Apex36. If 1.4 ATA fits your routine, the Elite36 offers the same 36-inch interior width in a lighter chamber.
OxyRevo describes the Elite36 as having space for two occupants, using a parent with a child as its example. Read that as OxyRevo's description of the widest chamber in its soft range. The only published dimensions are the 90-inch length and 36-inch diameter, and one oxygen mask ships with the chamber. If you plan on two-person sessions, talk to your physician first and contact us before ordering so we can walk through the setup with you.
Yes. The pressure adjustment converter lets you choose 1.2, 1.3 or 1.4 ATA using one press. OxyRevo says it included the converter because of the ear pressure people notice in their first sessions, so a new user can begin at the lowest setting and work up over later sessions.
The number of machines you run. The Standard version comes with three: air compressor AE01, air cooler ZLA01 and oxygen concentrator HG10. Each is set up and turned on separately, it costs less, and it is lighter to transport. The Pro version is one all-in-one unit, 27.56" × 13.78" × 29.53" at 80 kg, containing the air compressor, a 10L oxygen concentrator, two cooling machines, an anion generator, a timing alarm, an oxygen meter, a water container and air filters, with every function started by one press. The Pro also includes double activated carbon filters and Nano Water Ion technology with an anti-virus system, which OxyRevo states has a 99% virus sterilization rate.
A typical mild hyperbaric session lasts 60 to 90 minutes, 4 to 5 times a week. A common approach is a 40-session block followed by a week off before the next one.
That depends on the individual and is a question for your physician. As a general starting point for wellness use, plan for an initial block of 20 sessions and reassess after that. Athlete Restore makes no claims about outcomes.
Your ears may feel a pressure change as the chamber pressurizes and depressurizes, much like a plane during takeoff or descent. Swallowing or yawning clears it, and ears commonly adjust after the first few sessions. During a session you can read, listen to music, watch something or sleep, and that is where the 36-inch diameter pays off.
Wear loose-fitting, comfortable clothing.
Check with your physician before starting, especially if you have any ear, sinus or lung condition. As for the equipment, here is how the Elite36 works: the chamber is pressurized with filtered air, a pressure valve and relief valves regulate internal pressure, high-precision gauges show the pressure inside and outside, and the chamber can be depressurized and opened from both inside and outside. The emergency valve is rated for an occupant exit within 30 seconds.
Whether a child should use a hyperbaric chamber is a conversation to have with your physician, and Athlete Restore makes no claims about outcomes for any group. As for the equipment, OxyRevo positions the Elite36's 36-inch diameter as space for two occupants, such as a parent with a child; the chamber depressurizes and opens from the outside as well as the inside; and the emergency valve releases pressure for an exit within 30 seconds.
No. Setup means connecting the air and oxygen tubing and the power cable from the operating unit to the chamber, and you can run it from inside or outside. The Pro version takes one press to start every function; the three machines in the Standard version are turned on one at a time. Contact us if you would like the user manual or the Pro version manual, and lifetime technical support is included at no cost.
Because the oxygen concentrator makes oxygen continuously, there are no oxygen tanks to buy or refill. The compressor filters are the only parts that need routine replacement, every 6 to 12 months depending on how much you use it. Spare filters and fuses come with the chamber.
It comes from a 10L oxygen concentrator that is included with both the Standard and Pro versions, draws from room air and keeps running for the full session. An oxygen mask comes with the chamber, together with the air and oxygen tubing. The chamber itself is pressurized with filtered air.
The published sound rating is ≤50 dB. OxyRevo's automatic pressure relief valves spread out the airflow to lower venting noise, a direct fix for a common complaint: relief valves loud enough to keep you awake inside the chamber.
Both versions come with cooling hardware: two cooling machines and a water container in the Pro unit, and the ZLA01 air cooler in the Standard version. OxyRevo describes the system as pulling humidity out of the air inside the chamber and cooling it. It runs on electricity and needs no ice water and no Freon. A realistic expectation: in a room with working air conditioning the interior stays comfortable, and the system's main role is managing condensation and airflow. If you plan to run sessions in a hot or humid room, let us know before you order.
The cover is made of High Strength TPU in grey, with OEM colors available on request. The seams are joined with high-frequency heat welding, so the joints use no glue and no stitching. Valve labels are marked by UV laser, which means no glued paper stickers that fade or peel off over time.
When inflated, the chamber takes up 90 inches by 36 inches of floor space, and you need clear access along one side for the zipper plus room for the operating unit. The chamber weighs 33 lbs (15 kg) and deflates through its pressure deflate valves for storage or transport. The Pro unit is the heavy item at 80 kg and stays put once placed; the three separate machines of the Standard version are easier to move one by one.
Typically about 3 weeks, with roughly one week of production and 7 to 10 days of shipping via FedEx Air. You get tracking when the order ships.
OxyRevo provides a 1-year commercial and 2-year home use warranty, along with lifetime technical support at no cost. If a quality issue comes up during the warranty period and it can be repaired, OxyRevo sends replacement parts free and walks you through the repair step by step with photos and video. If it cannot be repaired, OxyRevo sends a new machine at no cost.
Standard Delivery drops the crated chamber at your location, and unloading, uncrating and moving it are up to you. White Glove Delivery & Chamber Education is a separate item you can add for full service: unloading, setup and cleanup are handled for you, and the team shows you how to operate the chamber.
